Our Most Selling Trusted Solution for managing pedestrian flow. Compact, secure, and user-friendly.
3 x 120° stops with anti-pass mechanism for one-way safety.
Self-centering spring mechanism ensures silent, smooth operation.
Open standard integrates easily with access control panels or readers.
AAKASH SYSTEMS are based on a smooth reliable mechanism which is available in non motorized version.
The mechanism is self-centering to make sure that the unit returns smoothly to its home position and the electromechanical braking system is designed to ensure the unit does not lock up on users and therefore maintains consistent high throughput rates.

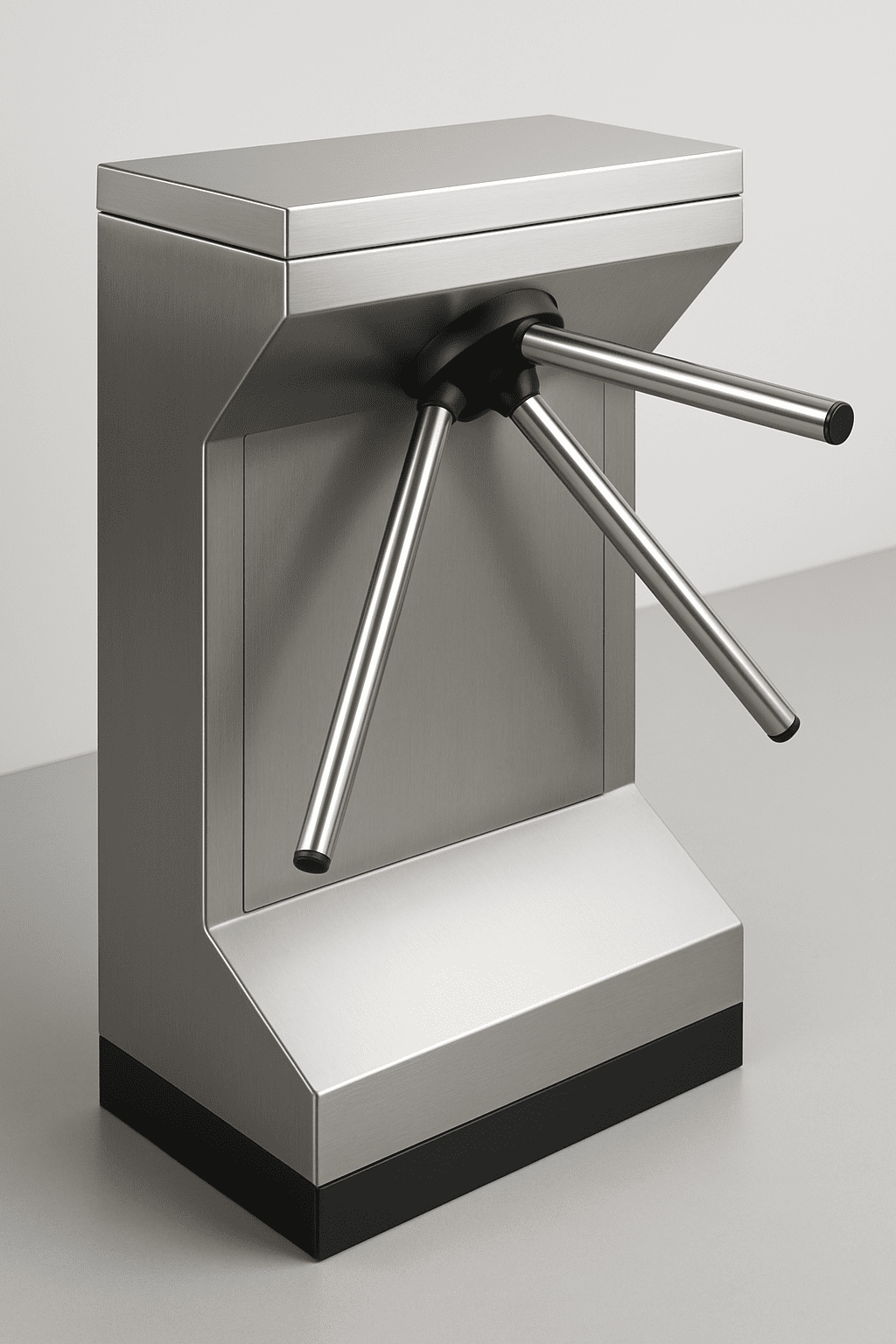

The mechanical tripod turnstiles are straight forward and familiar to most users. The 3 arms can rotate in both directions, controlled by an Access Control System or Ticketing System. After an authorizing input from the Selected Control System the lock activates and LED Indicators show the user that they have been authorized, then, after a small amount of pressure from the user the arms complete their cycle.
Stainless Steel 304 Grade (or) M.S with Epoxy Powder-Coated.
Barcode, QR Code, RFID, Proximity, Biometric Scanner.
Electro Mechanical Locking System.
The mechanical system is designed for maintenance free.
Dry Relay Contact Switching.
1 person per 2-3 seconds (subject to response of the Pedestrian).
24W DC Max per Lane.
Passage Width of 20 Inches or 500mm based on International Standards (can be Increased or Decreased).
In case of System failure the locking lever can be released so that the arms rotates freely in both directions. Even the barrier arm can be removed.
5 Years of Warranty on sole Mechanical Product.
Parks, Passenger Terminals, Shopping Malls, Factories, Corporate Offices, Sports Complexes, Airports, Railway Stations, Conference Halls, Server Rooms, High Security Zones, Restaurants, Hotels, and Clubs.
