Strong. Reliable. Automatic – Control at the Gate.

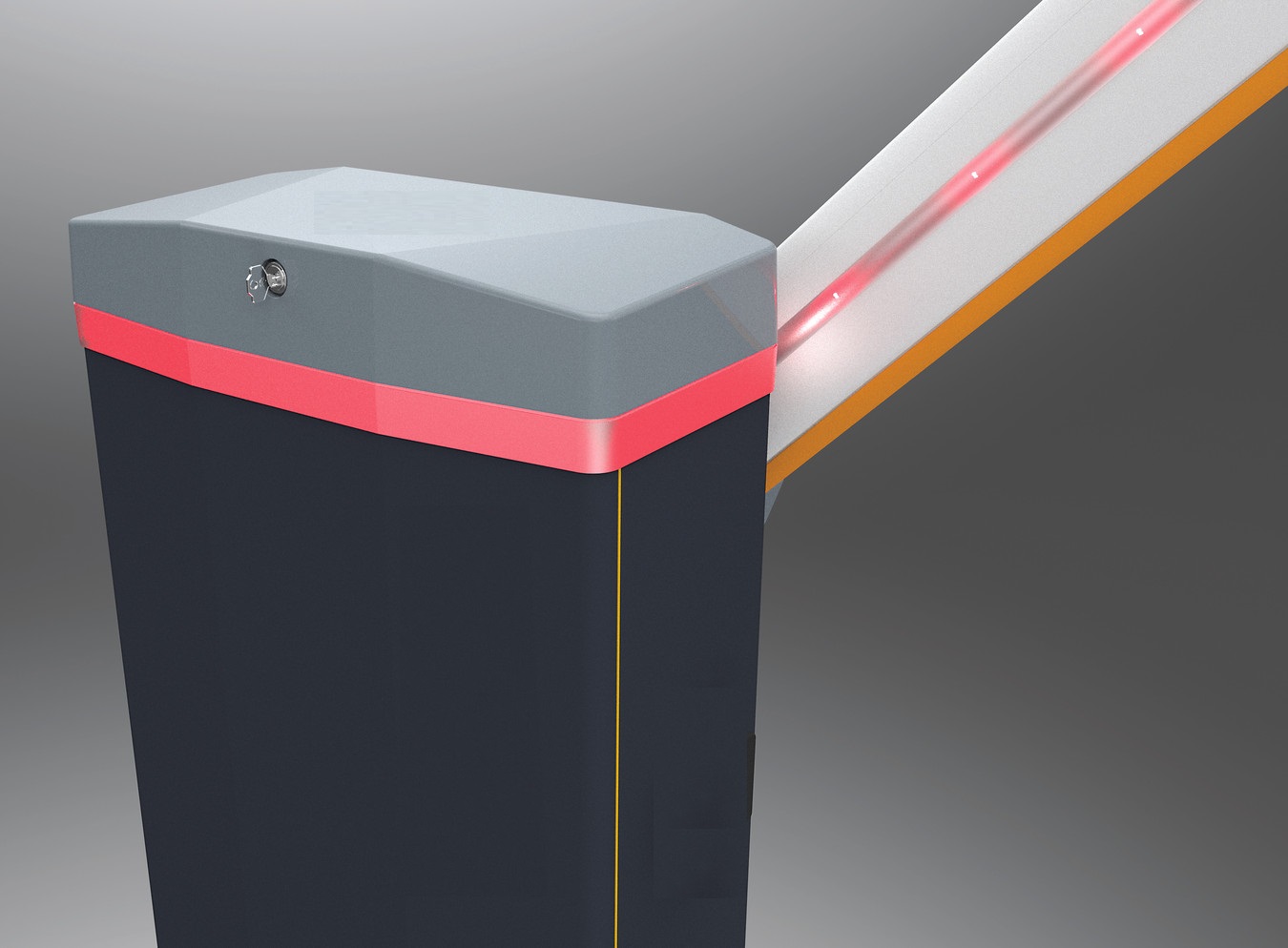

Heavy-Duty Motor – Designed for 24/7 Operation.
Soft Start-Stop Technology – Smooth & Silent Operation.
Open standard integrates easily with access control panels or readers.

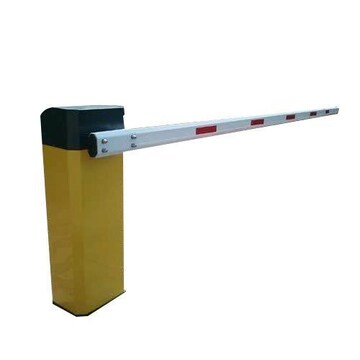

AAKASH SYSTEMS provides Single Lane Boom Barriers for Vehicle Passage with integration of Access Control or Vehicle Management System.
Our Barriers combine flexibility and reliably rugged for Long-term Performance.
A Boom Barrier works by controlling the movement of vehicles through an automated lifting arm that opens and closes based on access permission. In its normal state, the barrier arm stays lowered to block entry. When a valid signal is received—such as from an RFID card, remote control, license plate recognition system, or loop detector— the motor activates and raises the boom arm, allowing the vehicle to pass. Once the vehicle has crossed, sensors or timers trigger the arm to automatically lower back into position. Safety features like obstruction detection, loop sensors, and soft start-stop mechanisms ensure smooth, reliable, and secure operation. In the event of a power failure, the barrier can be manually lifted using a manual override key.
SS316 Body (or) Powder-Coated Steel (or) Galvanized Steel.
Weather Proof and Tamper-Proof Protection.

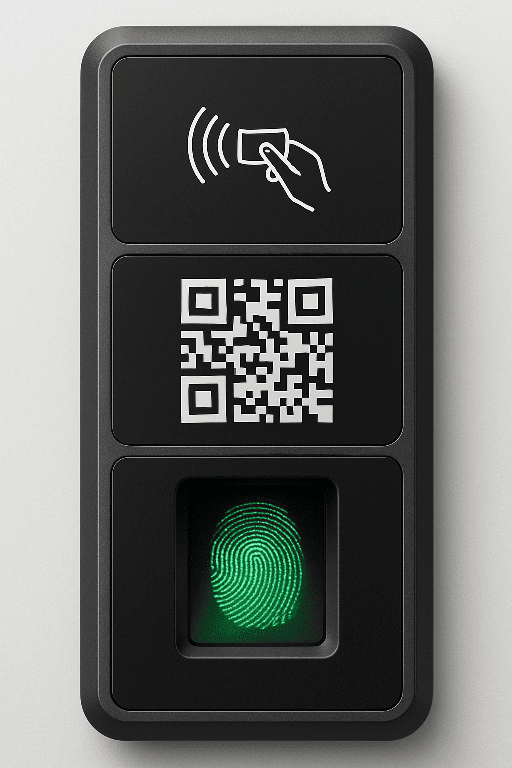

Barcode, QR Code, RFID, Proximity, Biometric Scanner.
High Torque Motor rotates to lift the Boom Up or Down.
Dry Relay Contact Switching.
400W DC Max per Lane.
Vehicle Passage Width from 3.8 Meters upto 7.8 Meters.
Emergency Manual Release. The boom arm reverses automatically if it hits or detects an object during closing, preventing damage or injury.
2 Years of Warranty on sole Mechanical Product.
Residential societies, Commercial complexes, Toll plazas, Parking lots, Industrial zones, Government buildings, Airports, Railway stations, Ports, Warehouses, Hotels, and corporate campuses.
